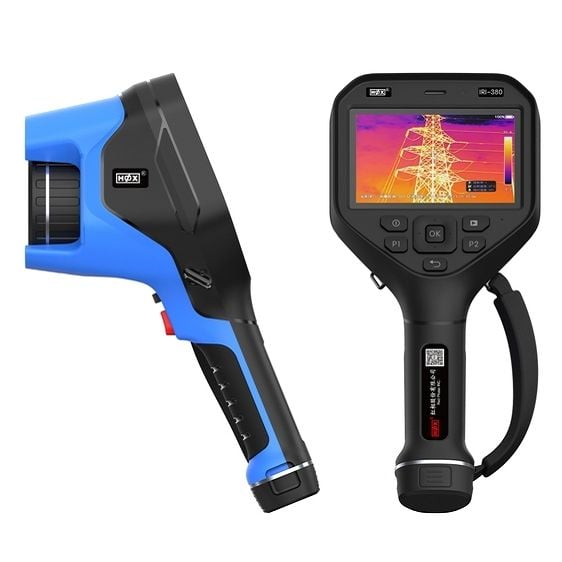

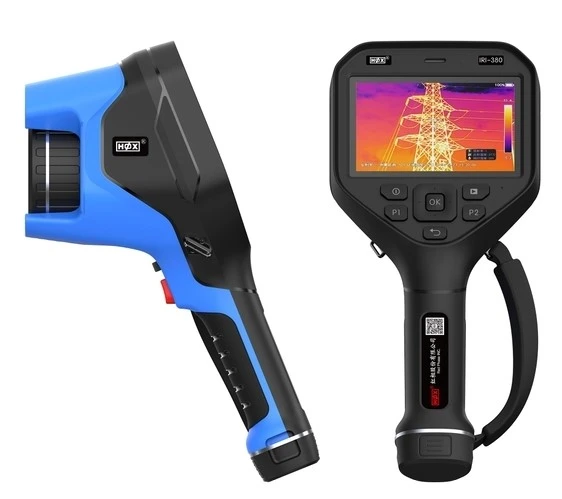

Experience next-level thermal imaging with our Handheld Thermal Imager, designed for precision and ease of use. Equipped with a high-definition resolution of 640x480 and 384x288, it ensures crystal-clear thermal imaging. The 800x480 LCD display offers vibrant visuals, while the ergonomic design guarantees comfort during prolonged use. Packed with versatile features, this device supports media recording and auto-generated reports, making it the perfect tool for professionals seeking efficiency and accuracy in thermal detection.
A must-have for a wide range of applications
Equipped with color alarms, temperature alerts, and the ability to add both voice and text notes, this thermal imager enhances your monitoring and reporting experience. The color alarms visually highlight temperature anomalies, while the temperature alerts provide real-time notifications for immediate action.
Best Ergonomic Design
Designed with ergonomics in mind, this thermal imager features an 18° vertical display viewing angle and a 35° handshake angle for optimal comfort and usability. The thoughtful design ensures effortless handling, reducing strain during extended use.
D380T
Detector: 384x288
Lens: 15mm
Display: 800x480 LCD
D660T
Detector: 640x480
Lens: 25mm
Display: 800x480 LCD
Product Parameters
|
Product Parameters |
||
|
Item |
D660T |
D380T |
|
Basic |
||
|
IR Image Resolution |
640×480 pixels |
384×288 pixels |
|
FPA/Wavelength Range |
Uncooled Microcaloric Detectors/7~14μm |
|
|
Focus Method |
Manual, automatic, electric |
|
|
Zoom |
×1-10 continuous digital zoom |
|
|
IR Lens Diameter |
Standard 25mm lens (optional wide-angle lens, telephoto lens) |
Standard 15mm lens (optional wide-angle lens, telephoto lens) |
|
IR Field of View |
24°×18° (Standard lens) |
|
|
Image Display |
||
|
Display |
Capacitive touch screen, bright LCD (Briview tech) 800×480 pixels |
|
|
Digital Camera |
Industrial grade 5 million pixels with LED fill light |
|
|
Video Light |
Built-in LED light |
|
|
Standard Palette |
Arctic, off-white, iron red, lava, rainbow, high rainbow |
|
|
Ultra Contrast Palette |
6 Flip Palettes |
|
|
Image Mode |
Infrared image, visible light image, thermal overlay, picture-in-picture, thumbnail image gallery, 14 false colors |
|
|
Functions |
||
|
Color Alarms (Isotherms) |
Yes |
|
|
Temperature Alarm |
High and low temperature alarm |
|
|
Voice/Text notes |
Yes |
|
|
Temperature Measurement |
||
|
Temperature Measurement Range |
-40°C～+650°C (-40°C~150°C /130°C ~650°C) |
|
|
High Temperature Extension |
Up to +1500°C (with high temperature lens) |
|
|
Precision |
±2°C or ±2% of reading, under the condition of ambient temperature 10～35°C |
|
|
Point temperature measurement |
10 |
|
|
Regional temperature measurement |
15/20 Movable temperature measurement area (square or circular temperature measurement area) |
|
|
Line temperature measurement |
15/20 temperature measurement line |
|
|
Measurement presets |
Display the highest temperature, lowest temperature, average temperature, center point temperature |
|
|
Reference temperature |
Manual setting using temperature difference |
|
|
Automatic cold/hot spot tracking |
Minimum/maximum temperature value and location in the whole area or local area |
|
|
Power |
||
|
Battery Type |
Rechargeable lithium battery |
|
|
Battery Operation Time |
Ambient temperature 25°C, single battery > 3hours |
|
|
Battery Charging Time |
90% full charge in 2 hours |
|
|
Charging System |
Online/DCP charger |
|
