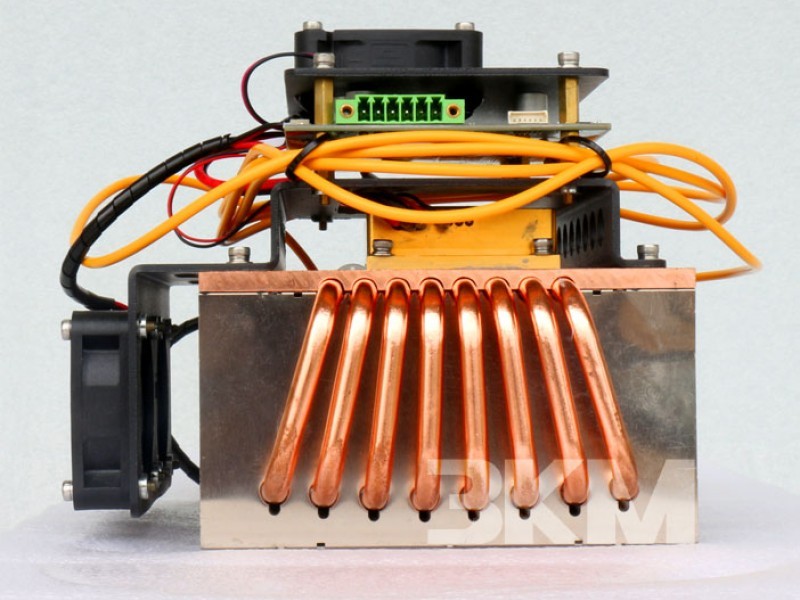

Ultra Vision IR Laser Lighting Module

The Ultra Vision Infrared (IR) Laser Illuminator is a multi-patented, high-performance system engineered for extended-range, nighttime surveillance. Featuring exceptional heat dissipation and advanced 3KM-ABC technology, it delivers superior night vision illumination up to 5,000 meters. Trusted by leading surveillance solution providers and military organizations, this illuminator offers customizable range extension up to 10,000 meters. Designed for rapid deployment, it integrates seamlessly with other surveillance systems, ensuring optimal operational readiness. It is available in three different illumination angles(0.3°~30°/0.15°~15°/0.07°~0.7°) and two different wavelengths(808nm/940nm).

• Automatic light adjustment and zoom, syncs with camera.
• Smart pairing and hot-swappable.
• Real-time monitoring with smart control.
• Smart temperature control.
• Lighting utilization rate ≥90%.
• Cold start at -35 ℃.
• Certification: IEC, CE, RoHS, REACH

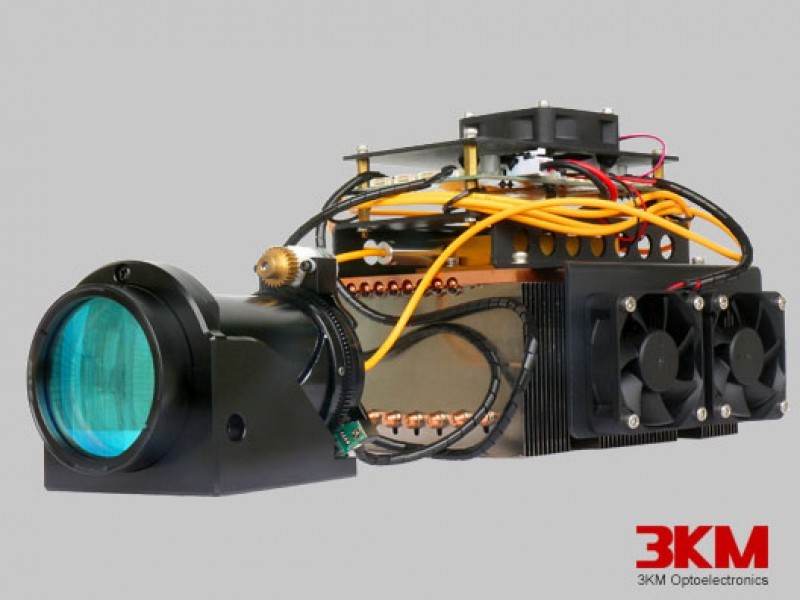

Ultra Vision IR laser illuminator night vision surveillance system

The Ultra Vision IR Laser Illuminator builds upon the advancements of its 2016 predecessor, delivering significant improvements in performance. Enhanced with 200x zoom and intelligent camera pairing, it offers unparalleled illumination quality, surpassing the capabilities of any competing product. This next-generation system ensures superior long-range night vision, providing unmatched clarity and precision.

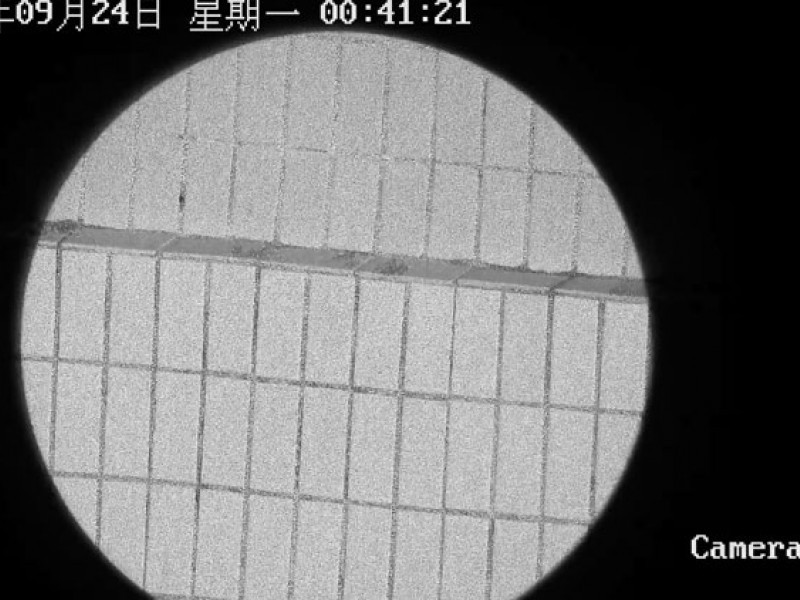

Ultra Vision IR laser illuminator test results

1. Intelligent features

• Automatic, manual, and remote light adjustment
• Features customizable presets and auto zoom.
• Compatible with various surveillance brands, models, and high-end lenses.
• Plug-and-play, no manual angle adjustment needed.
• Remote control and real-time monitoring of laser statue.

2. Technical Features

• Features a number of patented technologies.
• 200x Zoom.
• Well-defined spot border.
• Precise current design for low thermal redundancy and reduced power consumption.
• Smart temperature control.

• This IR laser illuminator is classified as a Class IV non-visible light laser. While the laser is on, staring back at or observing the laser with an optical instrument is strictly prohibited.
• While the IR laser illuminator is on, flammable objects are strictly prohibited within 200cm in front of the lens to prevent fires.
• The IR laser illuminator should be installed where people cannot see it directly, or at a safe distance where people can see it directly. Manufacturers should choose the laser radiation power according to its actual application environment to avoid hurting people's eyes.
• Manufacturers using this IR laser illuminator should put warning labels for laser radiation.
• Please contact our qualified maintenance personnel for service when a device fault occurs. The warranty will expire if the device is disassembled by anyone else.
