Vertical-Cavity Surface-Emitting Lasers (VCSELs) have emerged as a revolutionary technology in the field of long-range infrared (IR) illumination. As a prominent supplier of VCSEL Long Range IR Illumination, I have witnessed firsthand the growing demand for reliable and efficient long-range IR lighting solutions across various industries, including security, surveillance, automotive, and robotics. In this blog post, I will delve into the control methods for VCSEL long-range IR illumination, exploring the techniques and technologies that enable precise and effective management of these advanced lighting systems.
Understanding VCSEL Long Range IR Illumination
Before we dive into the control methods, let's briefly understand the fundamentals of VCSEL long-range IR illumination. VCSELs are semiconductor lasers that emit light perpendicular to the surface of the chip, offering several advantages over traditional edge-emitting lasers, such as low power consumption, high efficiency, and excellent beam quality. These characteristics make VCSELs ideal for long-range IR illumination applications, where the ability to project a focused and intense IR beam over a significant distance is crucial.
Long-range IR illumination systems typically consist of a VCSEL array, a driver circuit, and a control mechanism. The VCSEL array generates the IR light, while the driver circuit provides the necessary electrical power to operate the lasers. The control mechanism, on the other hand, regulates the output of the VCSEL array, allowing for precise adjustment of the illumination intensity, beam pattern, and other parameters.
Control Methods for VCSEL Long Range IR Illumination
Pulse Width Modulation (PWM)
Pulse Width Modulation is one of the most commonly used control methods for VCSEL long-range IR illumination. PWM involves varying the width of the electrical pulses applied to the VCSELs while keeping the pulse frequency constant. By adjusting the duty cycle (the ratio of the pulse width to the total period), the average power delivered to the VCSELs can be controlled, thereby regulating the illumination intensity.
PWM offers several advantages, including high efficiency, precise control, and compatibility with a wide range of driver circuits. It allows for smooth and continuous adjustment of the illumination intensity, making it suitable for applications where dynamic lighting control is required, such as surveillance cameras that need to adapt to changing environmental conditions.
Analog Control
Analog control is another straightforward method for regulating the output of VCSEL long-range IR illumination systems. In analog control, the voltage or current applied to the VCSELs is varied continuously to adjust the illumination intensity. This method provides a simple and direct way to control the VCSELs, without the need for complex digital circuitry.
However, analog control has some limitations. It is more susceptible to noise and interference, which can affect the stability and accuracy of the illumination intensity. Additionally, analog control may not offer the same level of precision as PWM, especially at low illumination levels.
Digital Control
Digital control methods, such as I2C (Inter-Integrated Circuit) and SPI (Serial Peripheral Interface), are increasingly being used in VCSEL long-range IR illumination systems. These protocols allow for communication between the control device (such as a microcontroller) and the VCSEL driver circuit, enabling precise and flexible control of the illumination parameters.
With digital control, multiple VCSELs can be controlled independently, allowing for the creation of complex beam patterns and illumination profiles. Digital control also offers the advantage of programmability, making it easy to implement advanced features such as automatic gain control, temperature compensation, and remote monitoring.
Beam Steering and Shaping
In addition to controlling the illumination intensity, it is often necessary to steer and shape the VCSEL beam to achieve the desired illumination pattern. Beam steering can be accomplished using mechanical or electro - optical methods. Mechanical methods involve physically moving the VCSEL array or the optical components to change the direction of the beam. Electro - optical methods, on the other hand, use devices such as liquid crystal deflectors or micro - electromechanical systems (MEMS) to control the beam direction without any moving parts.
Beam shaping techniques, such as the use of diffractive optical elements (DOEs) or refractive lenses, can be used to modify the beam profile, making it more suitable for specific applications. For example, a DOE can be used to create a uniform illumination pattern over a large area, while a refractive lens can be used to focus the beam for long - range applications.
Our VCSEL Long Range IR Illumination Products

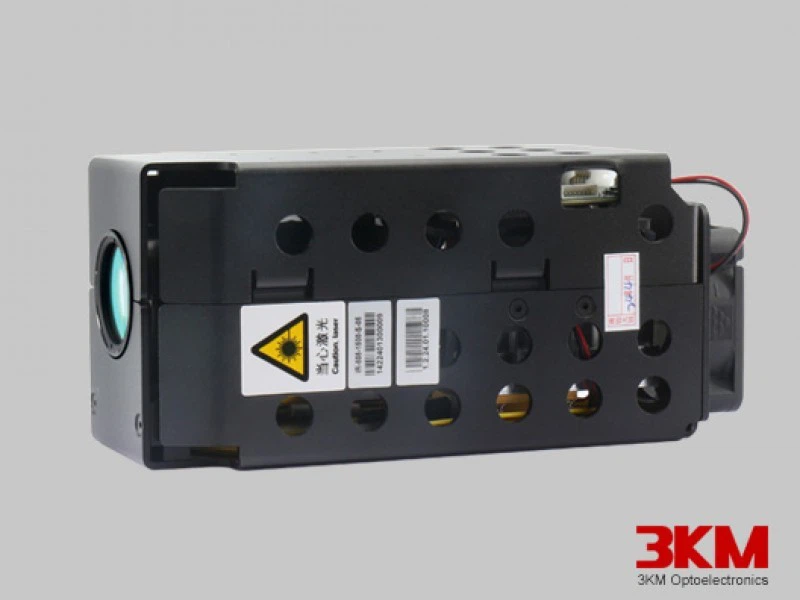

As a leading supplier of VCSEL Long Range IR Illumination, we offer a range of high - quality products designed to meet the diverse needs of our customers. Our products include the Ultra Vision IR Laser Lighting Module Mini, the Mini VCSEL IR Laser Lighting Module, and the Rugged Ultra Vision IR Laser Lighting Module.
These modules are equipped with state - of - the - art VCSEL technology and advanced control mechanisms, allowing for precise and efficient long - range IR illumination. They are designed to be rugged, reliable, and easy to integrate into various applications, making them an ideal choice for security, surveillance, and other long - range IR lighting needs.
Conclusion
The control methods for VCSEL long - range IR illumination play a crucial role in determining the performance and versatility of these lighting systems. Whether it's through PWM, analog control, digital control, or beam steering and shaping techniques, the ability to precisely regulate the illumination intensity, beam pattern, and other parameters is essential for achieving optimal results in a wide range of applications.
As a VCSEL Long Range IR Illumination supplier, we are committed to providing our customers with the highest quality products and the latest control technologies. If you are interested in learning more about our VCSEL long - range IR illumination solutions or would like to discuss your specific requirements, we encourage you to contact us for a detailed consultation and procurement洽谈.
References
- "Vertical - Cavity Surface - Emitting Lasers: Design, Fabrication, Characterization, and Applications" by Connie J. Chang - Hasnain and Joachim Piprek.
- "Optical Engineering Handbook" edited by Myer K. Buland.
- "Semiconductor Lasers: Fundamentals and Applications" by Peter Zory.
